Magnetic drive 내에서 Polymerization 현상이 최소한으로 일어나도록 설계, 제작되어 있습니다.

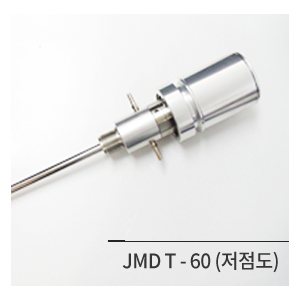

● 적용범위 : Stainless vessel 5L ~ 20L
● Material
- Body / Housing : SUS316L / AL6061T6
- Bushing / Seal : Rulon-J / Viton-A
● Torque : 55kgf-cm Max
● Driving
- Pressure : 1 x 10-⁴mmHg to 70kg/cm²
- Temp(with cooling) : Below 70℃ after cooling 300℃ Max
● Shaft size : Ø12 x 500mm
● Coupling : M30 x 1.75P(2P) Male

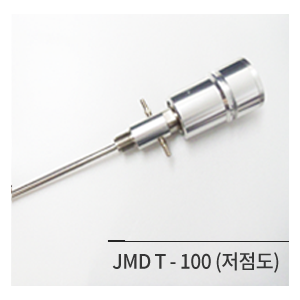

● 적용범위 : Stainless vessel 10L ~ 50L
● Material
- Body / Housing : SUS316L / AL6061T6
- Bushing / Seal : Rulon-J / Viton-A
● Torque : 105kgf-cm Max
● Driving
- Pressure : 1 x 10-⁴mmHg to 70kg/cm²
- Temp(with cooling) : Below 70℃ after cooling 300℃ Max
● Shaft size : Ø15 x 600mm
● Coupling : M38 x 2P Male

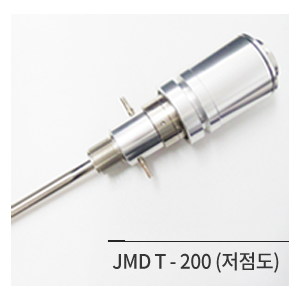

● 적용범위 : Stainless vessel 30L ~ 100L
● Material
- Body / Housing : SUS316L / AL6061T6
- Bushing / Seal : Rulon-J / Viton-A
● Torque : 200kgf-cm Max
● Driving
- Pressure : 1 x 10-⁴mmHg to 70kg/cm²
- Temp(with cooling) : Below 70℃ after cooling 350℃ Max
● Shaft size : Ø20 (OP/Ø25, Bearing type)
● Coupling : M50 x 2P Male

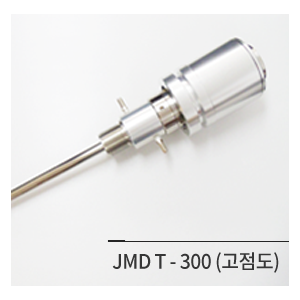

● 적용범위 : Stainless vessel 50L ~ 200L
● Material
- Body / Housing : SUS316L / AL6061T6
- Bushing / Seal : Rulon-J / Viton-A
● Torque : 300kgf-cm Max
● Driving
- Pressure : 1 x 10-⁴mmHg to 70kg/cm²
- Temp(with cooling) : Below 70℃ after cooling 350℃ Max
● Shaft size : Ø20 (OP/Ø25, Bearing type)
● Coupling : M50 x 2P Male

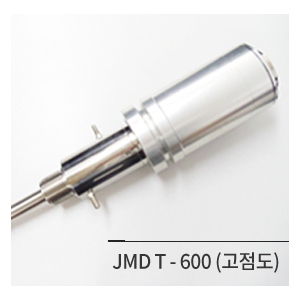

● 적용범위 : Stainless vessel 50L ~ 300L
● Material
- Body / Housing : SUS316L / AL6061T6
- Bushing / Seal : Rulon-J / Viton-A
● Torque : 600kgf-cm Max
● Driving
- Pressure : 1 x 10-⁴mmHg to 70kg/cm²
- Temp(with cooling) : Below 70℃ after cooling 350℃ Max
● Shaft size : Ø25 (OP/Ø30)
● Coupling : M50 x 2P Male

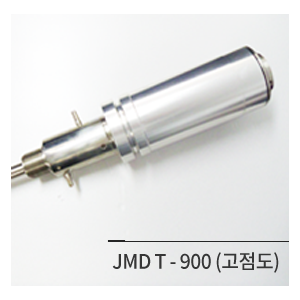

● 적용범위 : Stainless vessel 100L ~ 500L
● Material
- Body / Housing : SUS316L / AL6061T6
- Bushing / Seal : Rulon-J / Viton-A
● Torque : 900kgf-cm Max
● Driving
- Pressure : 1 x 10-⁴mmHg to 70kg/cm²
- Temp(with cooling) : Below 70℃ after cooling 350℃ Max
● Shaft size : Ø25 (OP/Ø30)
● Coupling : M50 x 2P Male
