Pilot reactor에 적용 가능하며 내부 Rotor 부위로 불활성 Gas의 Purge가 가능하도록 설계된 제품도 있으며, Magnetic drive 내에서 Polymerization 현상이 최소한으로 일어나도록 설계, 제작되어 있습니다.

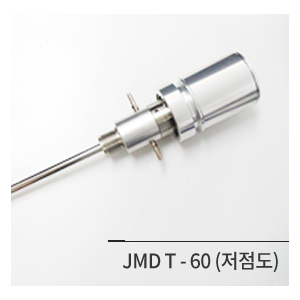

● 적용범위 : Stainless vessel 10L ~ 50L

● Material
   - Body / Housing : SUS316L / AL6061T6
   - Bushing / Seal : Rulon-J / Viton-A

● Toque : 105kgf-cm Max

● Driving
   - Pressure : 1 x 10^-⁴mmHg to 70kg/cm²
   - Temp(with cooling)
       : Below 70℃ after cooling 300℃ Max

● Shaft size : Ø15 x 600mm

● Coupling : M38 x 2P Male

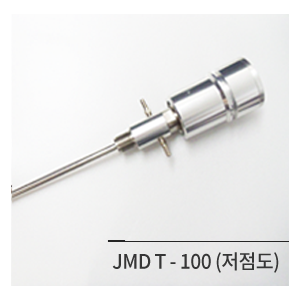

● 적용범위 : Stainless vessel 30L ~ 100L

● Material
   - Body / Housing : SUS316L / AL6061T6
   - Bushing / Seal : Rulon-J / Viton-A

● Toque : 200kgf-cm Max

● Driving
   - Pressure : 1 x 10^-⁴mmHg to 70kg/cm²
   - Temp(with cooling)
       : Below 70℃ after cooling 350℃ Max

● Shaft size : Ø20 (OP/Ø25, Bearing type)

● Coupling : M50 x 2P Male

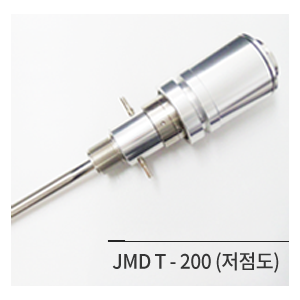

● 적용범위 : Stainless vessel 50L ~ 200L

● Material
   - Body / Housing : SUS316L / AL6061T6
   - Bushing / Seal : Rulon-J / Viton-A

● Toque : 300kgf-cm Max

● Driving
   - Pressure : 1 x 10^-⁴mmHg to 70kg/cm²
   - Temp(with cooling)
       : Below 70℃ after cooling 350℃ Max

● Shaft size : Ø20 (OP/Ø25, Bearing type)

● Coupling : M50 x 2P Male

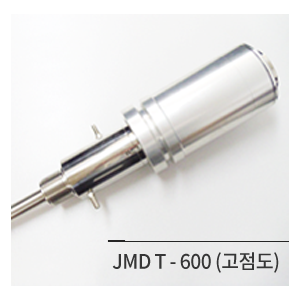

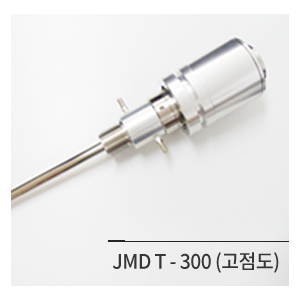

● 적용범위 : Stainless vessel 50L ~ 300L

● Material
   - Body / Housing : SUS316L / AL6061T6
   - Bushing / Seal : Rulon-J / Viton-A

● Toque : 600kgf-cm Max

● Driving
   - Pressure : 1 x 10^-⁴mmHg to 70kg/cm²
   - Temp(with cooling)
       : Below 70℃ after cooling 350℃ Max

● Shaft size : Ø25 (OP/Ø30)

● Coupling : M50 x 2P Male

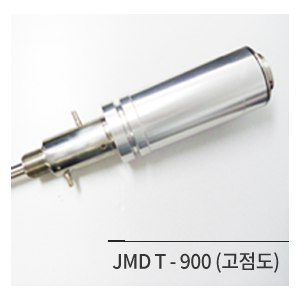

● 적용범위 : Stainless vessel 100L ~ 500L

● Material
   - Body / Housing : SUS316L / AL6061T6
   - Bushing / Seal : Rulon-J / Viton-A

● Toque : 900kgf-cm Max

● Driving
   - Pressure : 1 x 10^-⁴mmHg to 70kg/cm²
   - Temp(with cooling)
       : Below 70℃ after cooling 350℃ Max

● Shaft size : Ø25 (OP/Ø30)

● Coupling : M50 x 2P Male
